TDCSOLAR 1kw 2kw 3kw 4kw 5kw solar security home system supply 220v 110v for pakistan tanzania market

FOB Reference Price:Get Latest Price
$0.45 - $0.80 / Watts | 1000 Watt/Watts ONE SET (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TDC
Model Number:
TDC-ON GRID 20KW
Solar Power (W):
2KW
Specification:
Normal
Application:
Home
Output Voltage (V):
110V/220V
Load Power (W):
2000W
Work Time (h):
24 Hours
solar panel:
A grade poly 255w-270/300-320w
Certificate:
CE/CQC/TUV/SGS
Iverter:
High Conversion Rate
Mouting System:
Customized Design
Protection:
Lighting Protection,Fuse Brake shoe, Automatic Resume Protector
Product Name:
2KW,3KW,5KW,10KW,15KW solar system with long warranty
PV Cable:
Anti-Exposure
OEM order:
Acceptable
Packaging & Delivery
Packaging Details
5000 Set/Sets per Year



Product Description

                                                                          2KW on grid solar power system



Connecting Diagram







Configuration List








Item

Certification

Description

Quantity

Warranty

Solar Panel



TUV / IEC / EC





mono 280w

8pcs



20   Years Linear Warranty





mono 335w

7pcs

poly   270w

8pcs

poly   320w

7pcs



Inverter



CGC / CQC

VDE0126-1-1



One(MPPT)Tracking/One Phase 220V,2000W/GW2000-NS



1set





5 Years



Distribution Box(Optional)







CE



Lightning Protection/Air switch,Fusegear,Knife Switch,Automatic Protector(Optional)



1set





5 Years





Mounting System





CE



Slant Roof Bracket/Cement Ground Bracket/Soil Ground Bracket



1set





10 Years



PV Cable

TUV/UL

DC port PV1-F 1*4mm²

20m

10 Years

AC port YJV- 3*4mm²

5m

10 Years



 01 Solar panel



1. Grade A, 4BB solar cell, Full Automatic, Welding Process, Positive Tolerance of power
2. Quality warranty: 20years linear warranty,25years product warranty



Type

MONO

POLY

Power Class

280W

335W

270W

320W

Open Circuit Voltage (Voc)

38.1

9.35W

38.1

45.8

Short Circuit Current (Isc)

9.27

46

9.23

9.15

 Max Power Voltage (Vmpp)

31.7

37.9

31.1

37.2

Max Power Current (Impp)

8.84

8.76

8.69

8.61

Efficiency²

≥17.1%

≥17.2%

≥16.5%

≥16.4%

Dimension

1650mm x 991mm x 35mm

1960mm x 991mm x 35mm

1650mm x 991mm x 35mm

1960mm x 991mm x 35mm

Weight

18kg±5%

22.5kg±5%

18kg±5%

22.5kg±5%

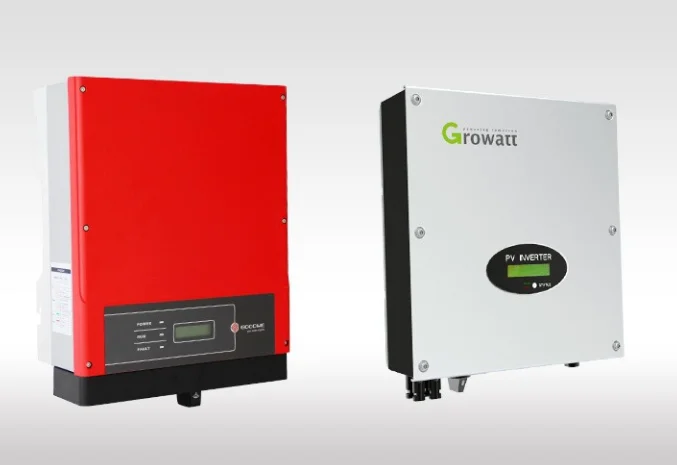

02 Solar Inverter



1. Small Size.Light Weight.Ultra-quiet

2. Communication program can be changed flexibly, with WiFi function

3. Certification: CGC .CQC .VDE0126-1-1 .VDE-AR-N 4105 CEI0-21 CE G83/2 . G59/3 SAA .

 EN50438 MEA .PEA

Model Parameter

GW2000-NS

Dimension(WxHxD)

344*274.5*128mm

Weight(kg)

7.5

Mounting

Wall Bracket

Ambient Temperature Range

-25~60°C(>45℃deloading)

Relative Humidity

0~95%

Max.Operating Altitude

4000m(>3000m derating)

Protection Degree

IP65

Topology

Transformerless

Night Power Consumption(W)

<1

Cooling Method

Natural Convection

Noise Emision(dB)

<25

Display

LCD

Communication

USB2.0; WiFi/RS485 (Optional)

Warranty(Year)

5/10/15/20/25(Optional) years

03 Distribution Box(Optional).lightning protection

1. Such distribution box with high safe and stable quality,has been tested several subjects,

more than 10 thousand families are using.

2. Function Introduction:

    With automatic protection function
    With lightning protection function
    The security of the whole system can be fully guaranteed.

3. Certification: CE



Components

Parameter

Function

 Circuit breaker (Air Switch)

 16A

 When the current of the protected circuit exceeds the specified value, the circuit breaker will automatically break off to protect the whole circuit.

 Fusegear

 16A

When the current of the protected circuit exceeds the specified value , fusegear will break off automatically

Surge Protective Device(SPD)

 Uc:420V Imax:20KA

Photovoltaic lightning protection device

 In:10KAUp ≤ 1.8KV

 One Phase self dual over Voltage  Protection Device

 Working Range 220V,50Hz,

When the circuit voltage is higher or lower,it will shut down automatically.

 Over voltage protection

 Uvo = 270V ± 5V

When the voltage reaches standard level,it will recover automatically.

 Under voltage Protection

 Uoe = 170± 5V

 Knife Switch

  /

Automatic/by hand



04 PV Cable

1. Solar photovoltaic dedicate cable,double coat

2. Life expectance 25years under Outdoor enviroment

3. High flame retardant grade, high safety performance

05 Mounting System--- Customization Design

1. The wind capacity of such mounting system can reach (40m/s, 32.5kg/ square meters, level 13), snow load capacity

  can reach 70kg/  square meters.
2. The whole system has strong safety performance.
3. Can be customized based on customer’s actual situation
4. The mounting system can be designed with best solution based on slope roof,flat ground and soil ground
5. Certification: CE
