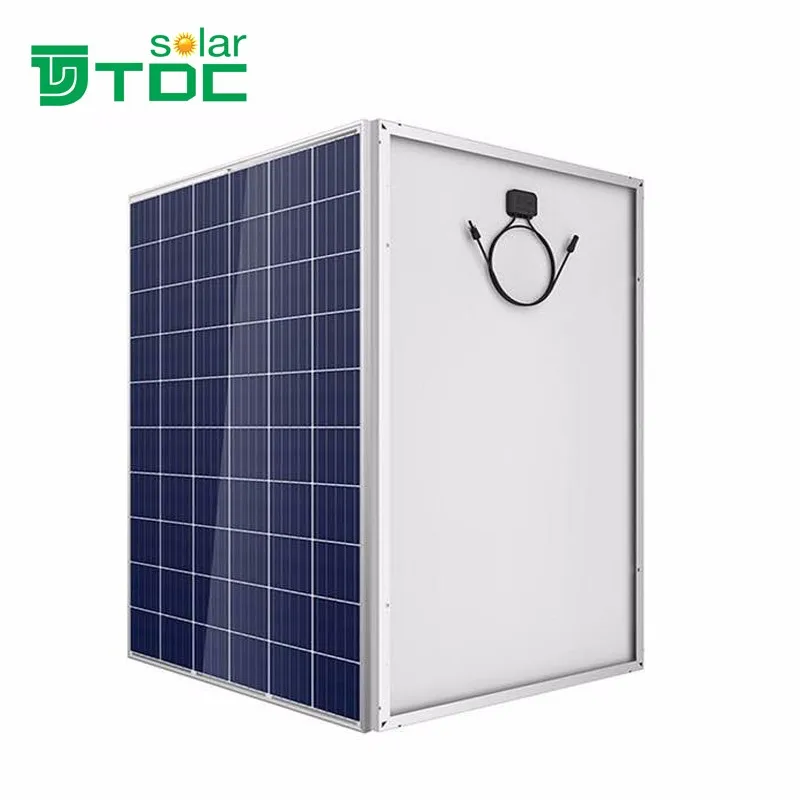

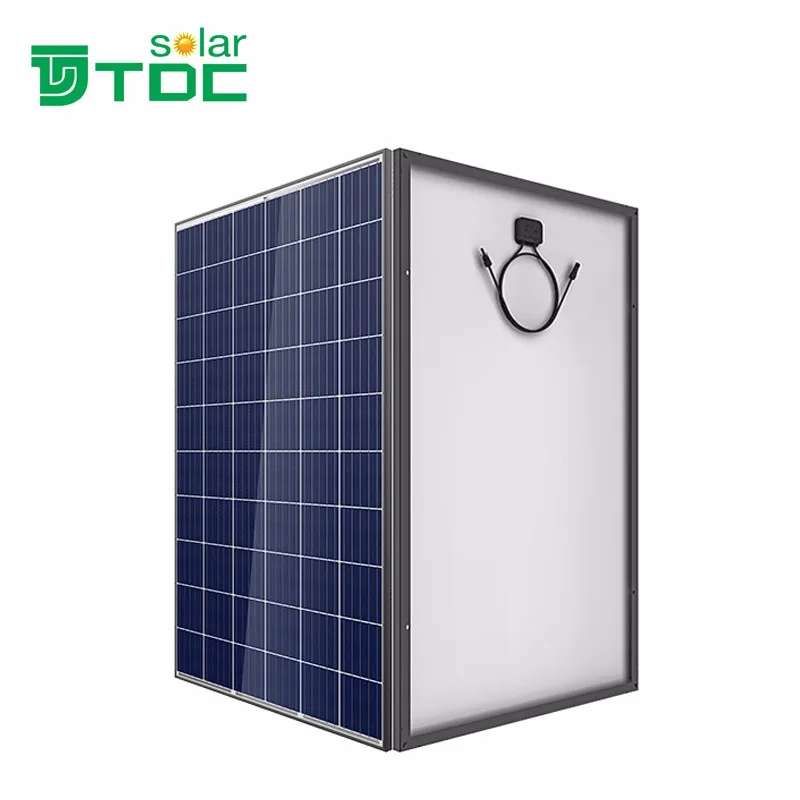

High power home use buy nano solar panels

FOB Reference Price:Get Latest Price
$0.30 - $0.42 / Watts | 2500 Watt/Watts 10 pcs (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TDCSolar
Model Number:
TDC-P250-280-60
Material:
Polycrystalline Silicon
Max. Power:
270W
Number of Cells:
60(6*10)pcs
Size:
1640*992*35MM
Cell Type:
Polycrystalline 156x156mm (6inch)
Front Glass:
3.2mm,High Transmission, Low Iron,Tempered Glass
Frame:
Anodized Aluminium Alloy

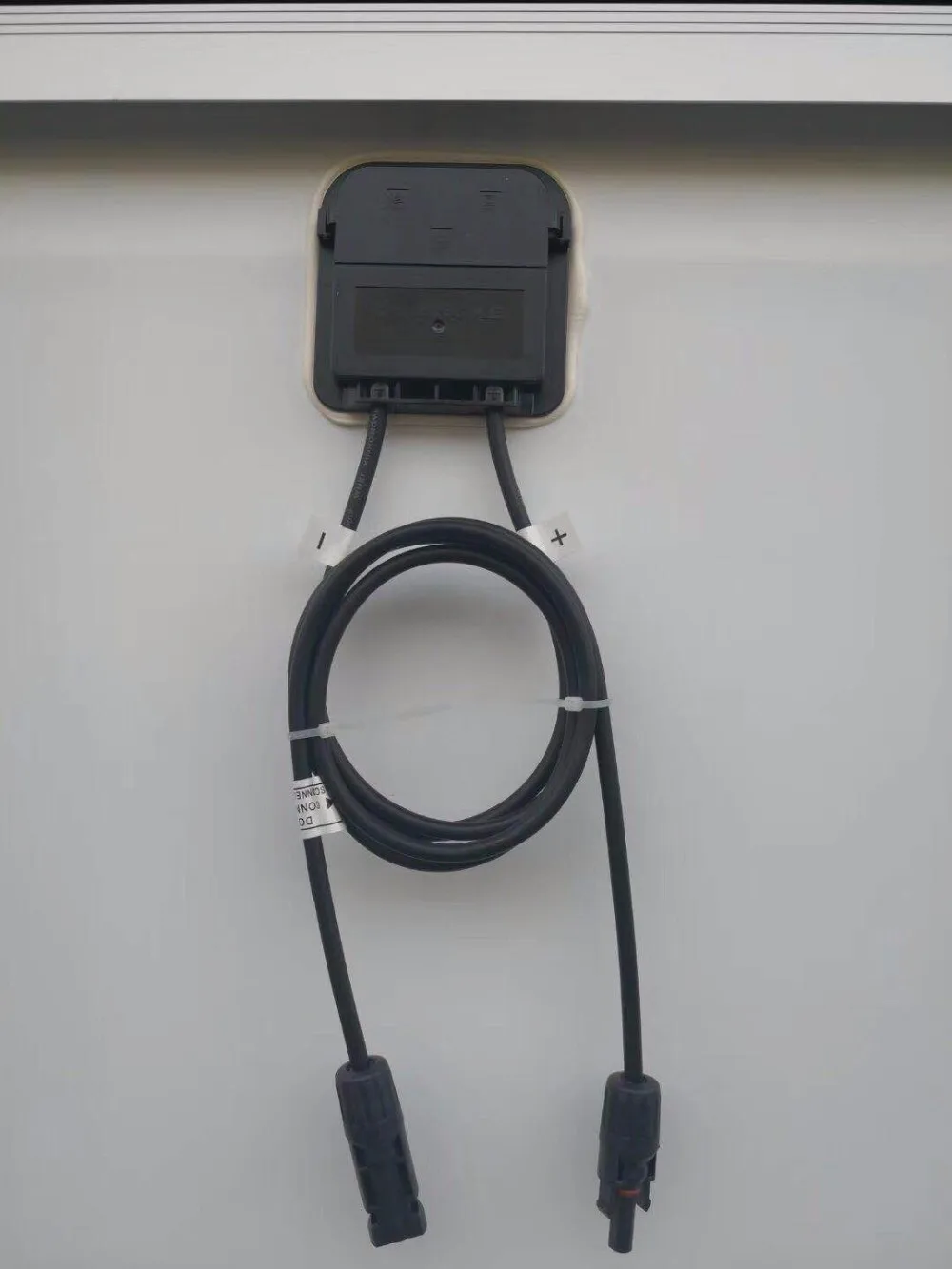

Junction box:
IP65 Rated
Output Cable:
TUV 1x4.0mm2,Length:900mm
Warranty:
25 years
Supply Ability
Supply Ability:
1500 Piece/Pieces per Day two containes
Packaging & Delivery
Packaging Details
Standard Export Carton and Pallets
Port
Shanghai and Ningbo seaport

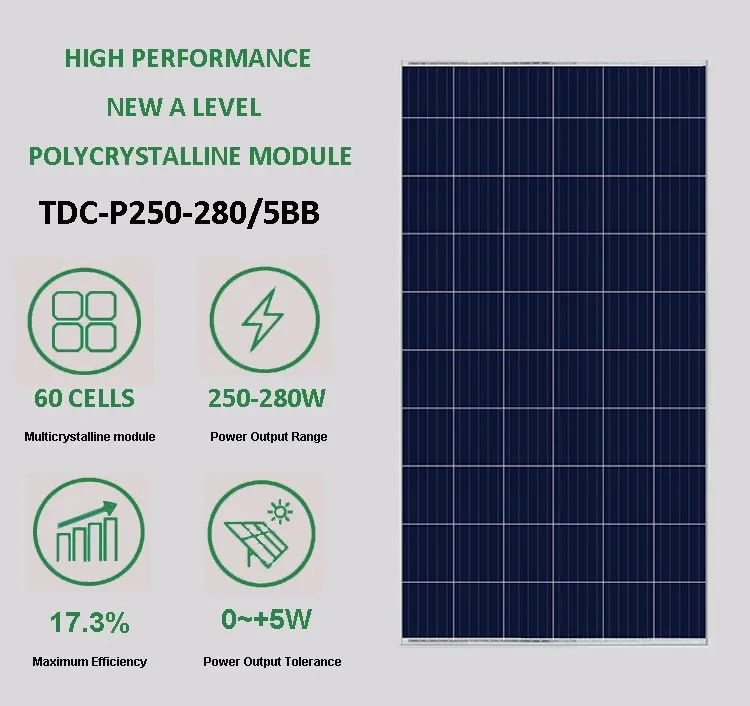

Product Description
Mode Type
TDC-P250
TDC-P260
TDC-P265
TDC-P270
TDC-P275
TDC-P280
Peak Power (Pmax)
250W
260W
265W
270W
275W
280W
Module Efficiency
15.4%
16.0%
16.3%
16.6%
16.9%
17.3%
Maximum Power Voltage (Vmp)
30.5V
31.1V
31.4V
31.7V
32.0V
32.3V
Maximum Power Current (Imp)
8.20A
8.37A
8.44A
8.52A
8.60A
8.67A
Open Circuit Voltage (Voc)
37.8V
38.1V
38.6V
38.8V
39.2V
39.6V
Short Circuit Current (Isc)
8.85A
8.98A
9.03A
9.09A
9.18A
9.26A
Power Tolerance
0 ~ +5W
Test Conditions(STC)
1000W/M2 soalr irradiance,1.5air mass,and cell temperature of 25°C

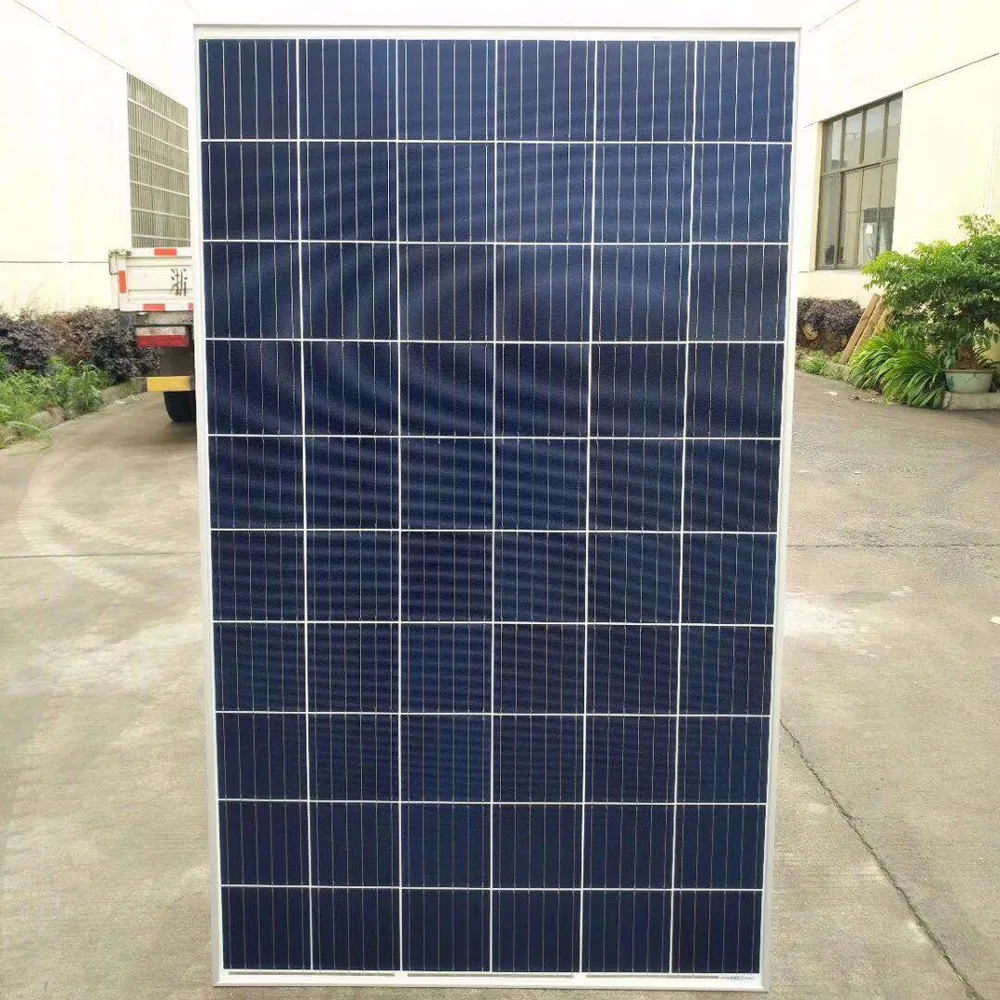

Detailed Images

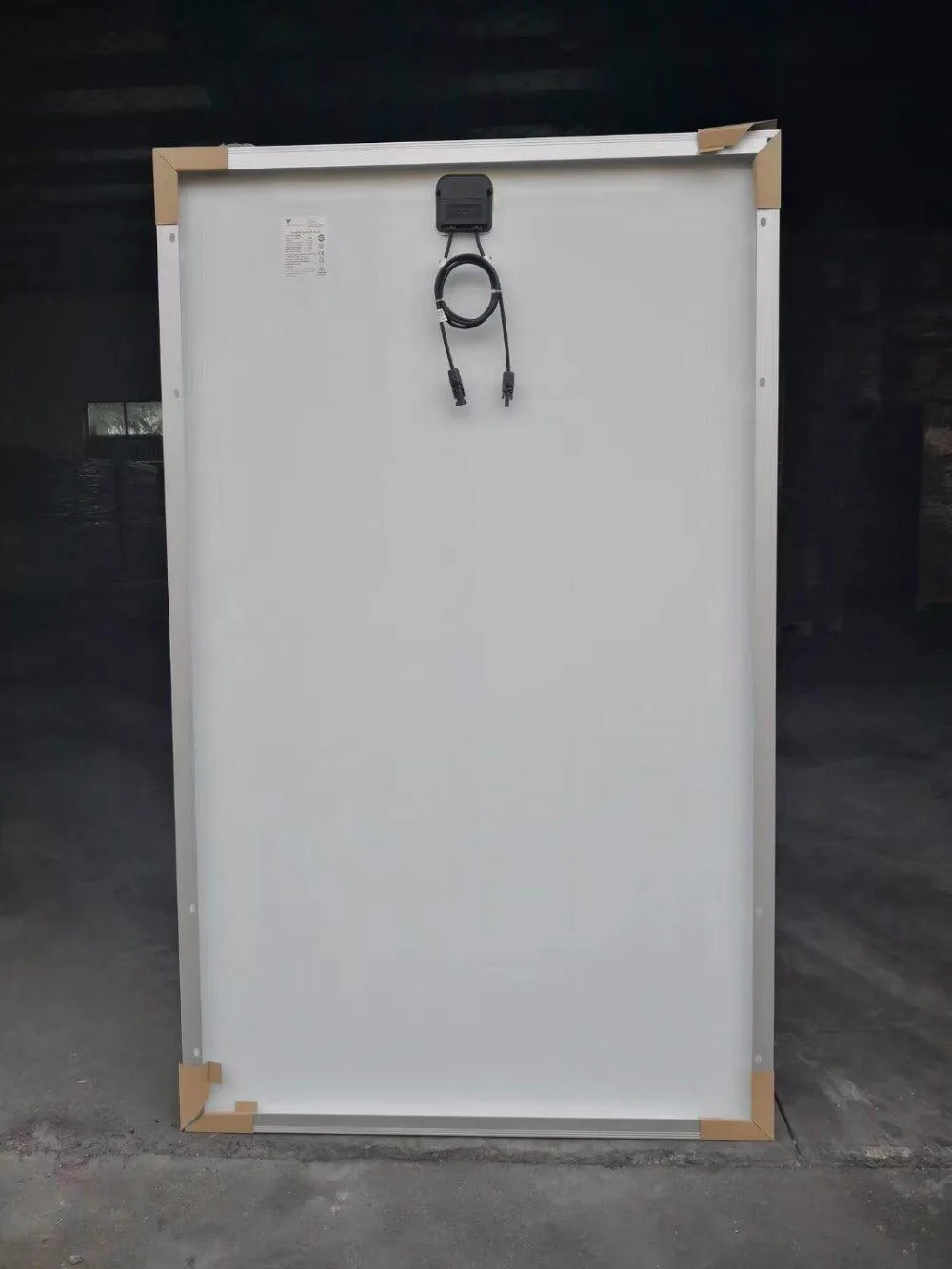

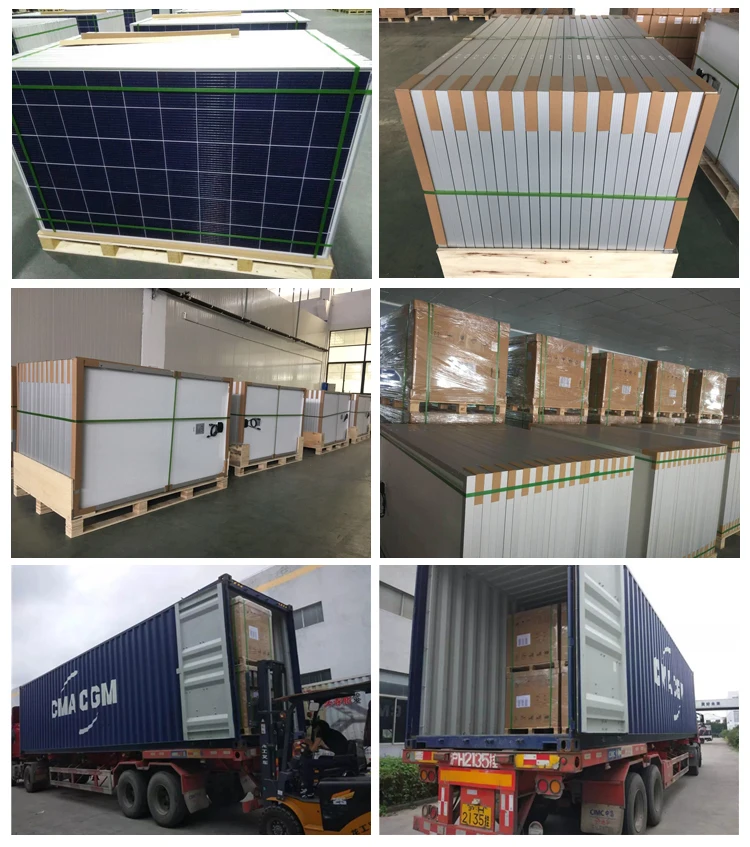

Packing & Delivery

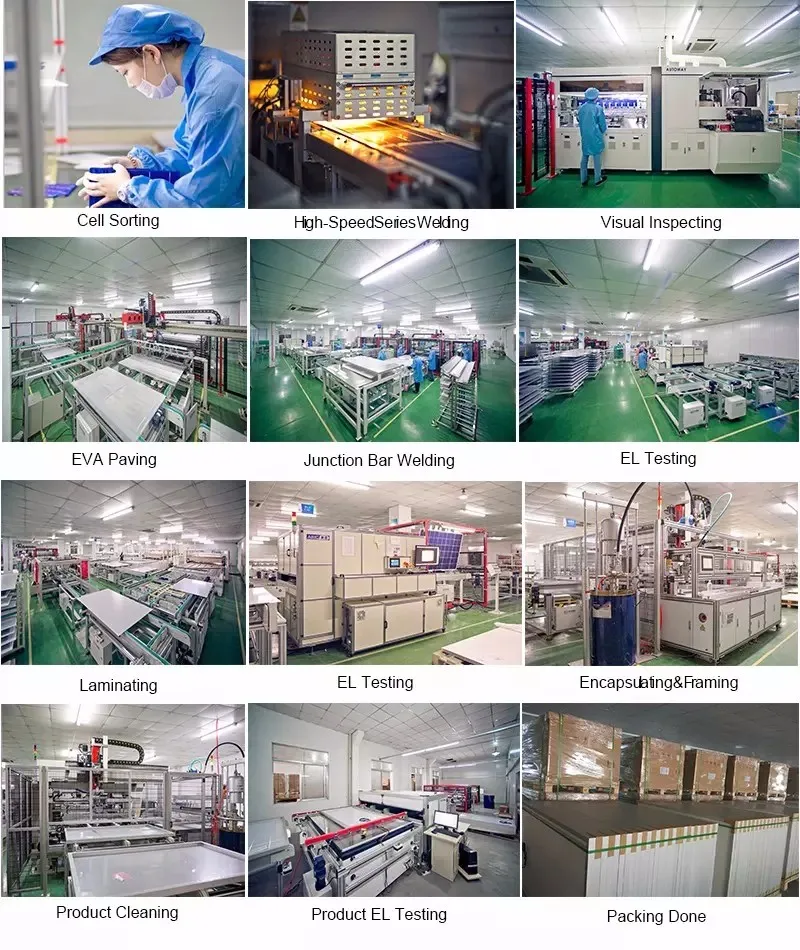

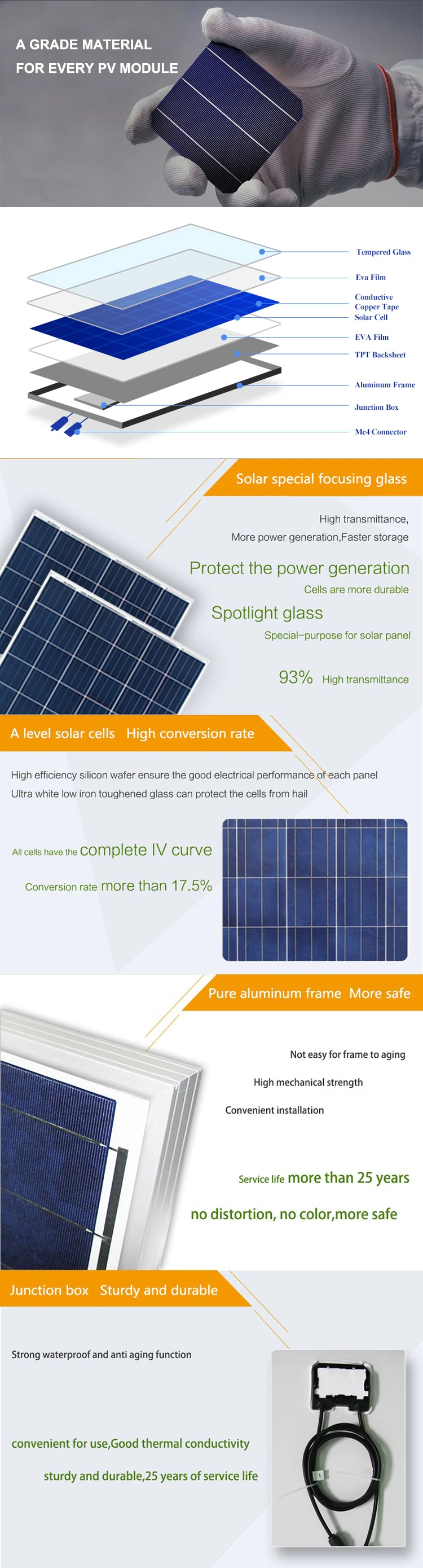

Detailed Production
Quality Inspection
WARRANTY

12-year material and workmanship warranty

12 years for a guaranteed minimum benefit of 90%

25 years for a guaranteed minimum benefit of 80%

25 years linear warranty

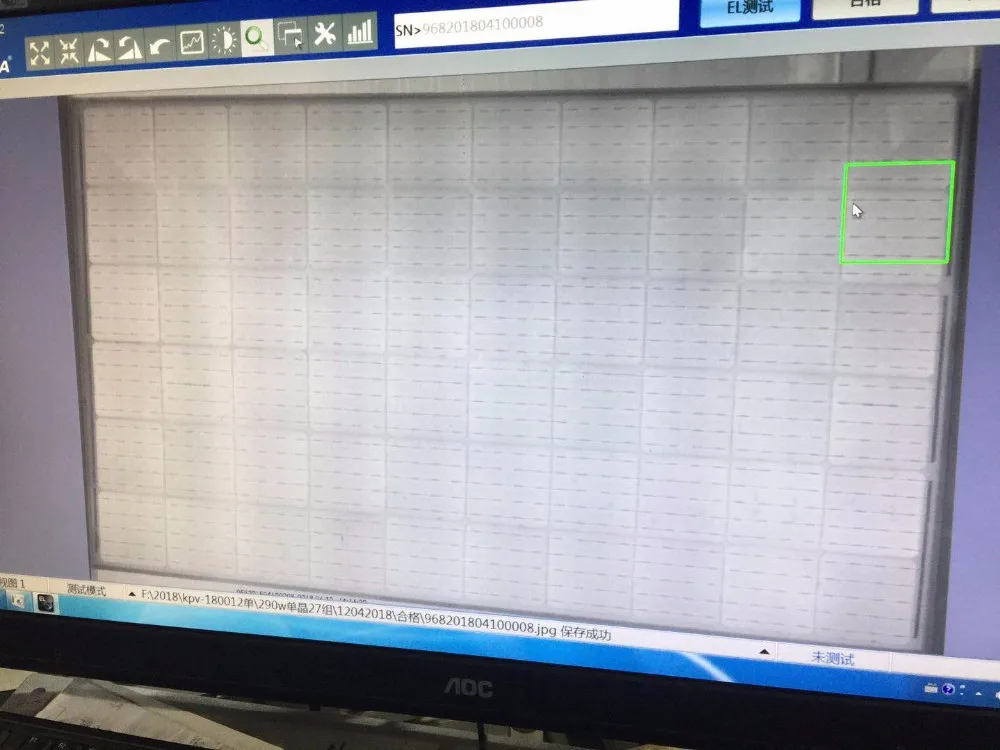

EL TEST

100% test for solar cell by flash testing.
100% EL testing before lamination, make sure every cell no dot,no scracth,no cracked
100% EL testing after lamnation, make sure no cracked during the lamination.
100% falsh tesing before package & shippment, make sure power tolerance 0~+5%


Related Products

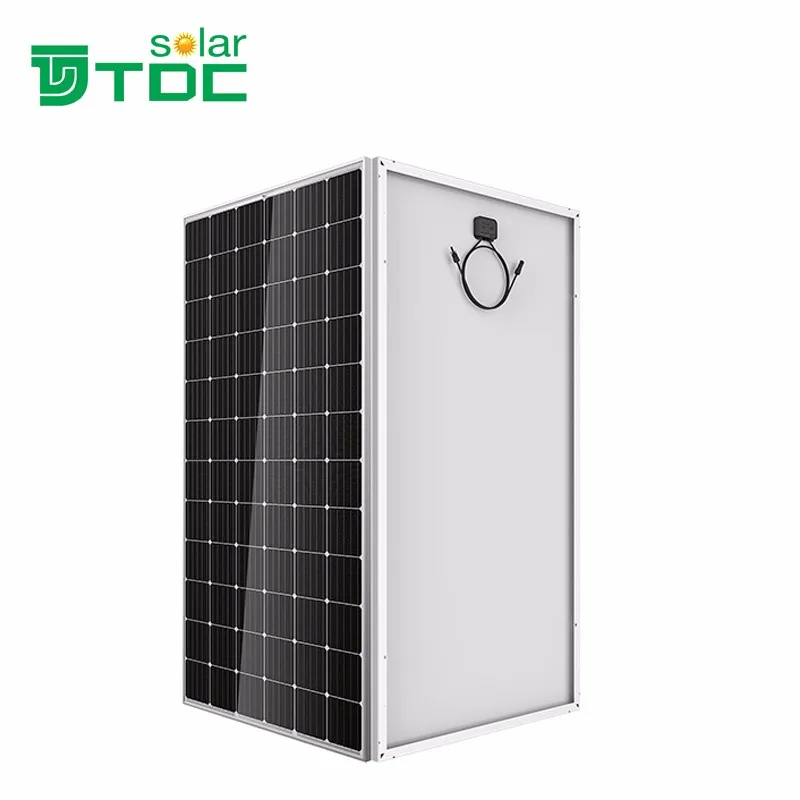

MONO SOLAR PANEL

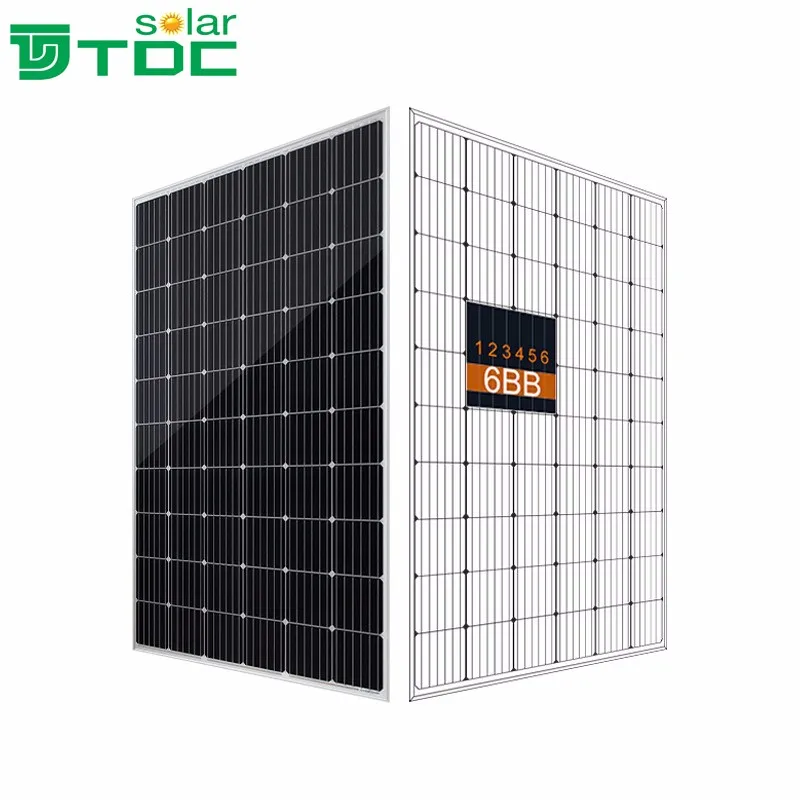

      MONO 5BB M250W-290W                MONO 6BB M280W-290W            Black MONO 5BB M250W-290W       MONO 5BB M300W-350W
